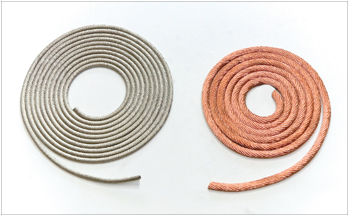

ANNEALED COPPER STRANMING WIRE
- 연선은 구리소선을 여라가닥으로 꼬아 원형으로 짜내는 선으로서 주석도금을 할 경우 전기 도전율이 더 좋고 브레이크 TM위치, 카본브러쉬, 리드와이어 등에 사용한다.
SIZE
| SQ(㎟) |
0.05mm |
0.08mm |
0.18mm |
CURRENT(A) |
| COMPOSE |
PESIGNSQ (㎟) |
OUTSIDE DIA (mm) |
WT (g/m) |
COMPOSE |
PESIGNSQ (㎟) |
OUTSIDE DIA(mm) |
WT(g/m) |
COMPOSE |
PESIGN SQ (㎟) |
OUTSIDE DIA (mm) |
WT(g/m) |
| 1.25 |
7/91/0.05 |
1.25 |
1.7 |
11.8 |
7/36/0.08 |
1.26 |
1.7 |
12 |
7/7/0.18 |
1.24 |
1.7 |
11.8 |
15 |
| 2.0 |
7/146/0.05 |
2.0 |
2.1 |
19.0 |
7/57/0.08 |
2.0 |
2.1 |
19 |
7/12/0.18 |
2.13 |
2.2 |
20.2 |
20 |
| 3.5 |
7/255/0.05 |
3.50 |
2.8 |
33.2 |
7/100/0.08 |
3.51 |
2.8 |
33 |
7/20/0.18 |
3.56 |
3.0 |
33.8 |
30 |
| 5.5 |
7/406/0.05 |
5.57 |
3.7 |
52.9 |
7/157/0.08 |
5.52 |
3.7 |
52 |
7/31/0.18 |
5.51 |
3.7 |
52.4 |
45 |
| 8 |
|
|
|
|
7/228/0.08 |
8.01 |
4.1 |
76.1 |
7/45/0.18 |
8.01 |
4.1 |
76.1 |
55 |
| 10 |
|
|
|
|
7/287/0.08 |
10.0 |
4.6 |
95.8 |
7/57/0.18 |
10.1 |
4.6 |
96.4 |
60 |
| 14 |
|
|
|
|
7/399/0.08 |
14.0 |
5.5 |
133.3 |
7/79/0.18 |
14.0 |
5.5 |
133.6 |
65 |
| 22 |
|
|
|
|
|
|
|
|
7/124/0.18 |
22.0 |
6.9 |
361.9 |
75 |
| 38 |
|
|
|
|
|
|
|
|
7/214/0.18 |
38.1 |
9.0 |
361.9 |
115 |
| 60 |
|
|
|
|
|
|
|
|
19/125/0.18 |
60.4 |
11.5 |
573.8 |
185 |
| 80 |
|
|
|
|
|
|
|
|
19/166/0.18 |
80.2 |
13.3 |
762.0 |
245 |
| 100 |
|
|
|
|
|
|
|
|
19/207/0.18 |
100.0 |
14.9 |
950.3 |
300 |
| 150 |
|
|
|
|
|
|
|
|
19/311/0.18 |
150.2 |
18.2 |
1427.7 |
455 |
| 200 |
|
|
|
|
|
|
|
|
19/414/0.18 |
500.0 |
21.0 |
1900.6 |
610 |
| 250 |
|
|
|
|
|
|
|
|
19/518/0.18 |
250.3 |
23.5 |
2378.0 |
755 |
| 325 |
|
|
|
|
|
|
|
|
19/323/0.26 |
325.6 |
27.0 |
3048.0 |
|
| 500 |
|
|
|
|
|
|
|
|
19/496/0.26 |
500.0 |
34.0 |
4751.0 |
|
